DN50冷熱水銅頭金屬軟管

服務內容：DN50冷熱水銅頭金屬軟管

簡介：DN50冷熱水銅頭金屬軟管 Copper head metal hose with cold and hot water 上海淞江減震器集團有限公司官方網站為您介紹：DN50冷熱水銅頭金屬軟管信息，我們?yōu)楸姸嗬錈崴艿琅涮足~頭金屬軟管產品，該產品采......

DN50冷熱水銅頭金屬軟管
Copper head metal hose with cold and hot water

上海淞江減震器集團有限公司官方網站為您介紹：DN50冷熱水銅頭金屬軟管信息，我們?yōu)楸姸嗬錈崴艿琅涮足~頭金屬軟管產品，該產品采用黃銅材質生產的活接絲扣鏈接方式，中間采用不銹鋼304波紋材質，具有良好的彎曲效果和減震效果，銅頭活接具有良好的耐腐蝕和方便性。
Shanghai Songjiang absorber group limited official website for your introduction: DN50 hot and cold water, copper head hose information, we have many cold and hot water pipes supporting copper head hose products, the product is made of brass material production connecting thread link, the middle 304 stainless steel corrugated material, has good bending effect and damping effect the copper head is movably connected, has good corrosion resistance and convenience.

性能介紹：
公稱通徑：DN50mm
自然長度：250mm
軸向壓縮：10mm
軸向伸長：5mm
橫向位移：20mm
偏轉角度：45°
Performance introduction:

Nominal path: DN50mm

Natural length: 250mm

Axial compression: 10mm

Axial elongation: 5mm

Lateral displacement: 20mm

Deflection angle: 45 degrees產品介紹：

1.產品名稱：DN50冷熱水金屬軟管

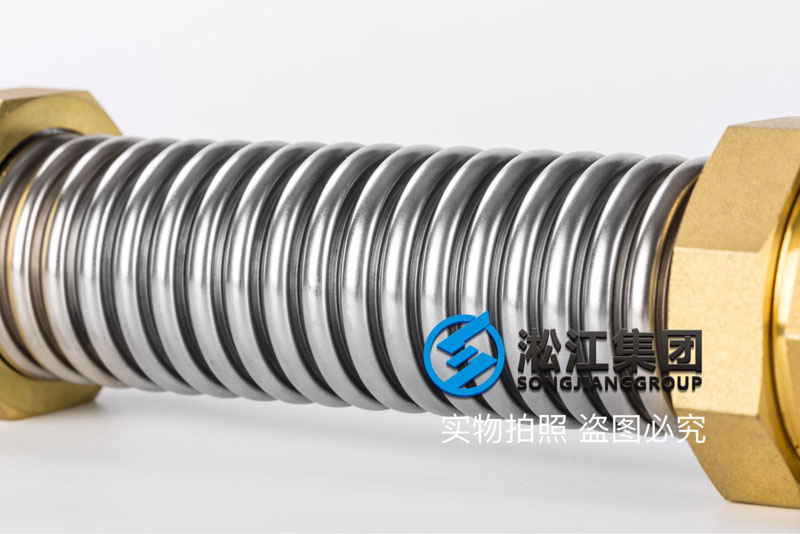

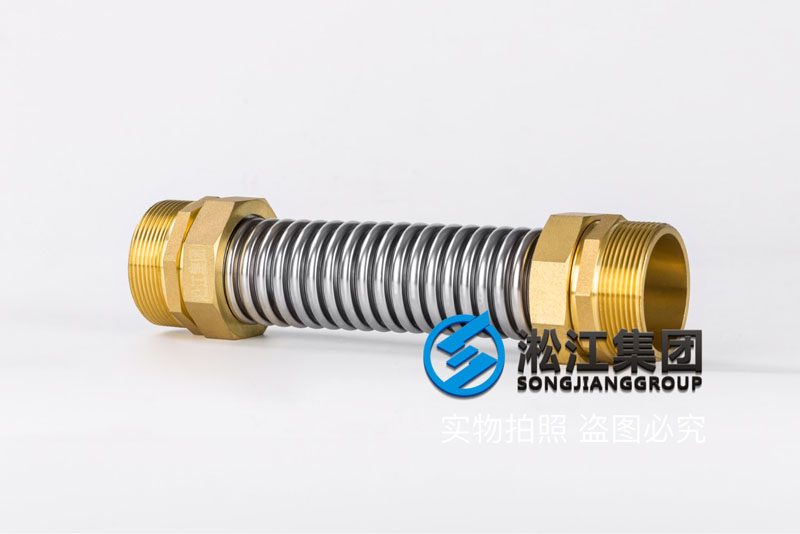

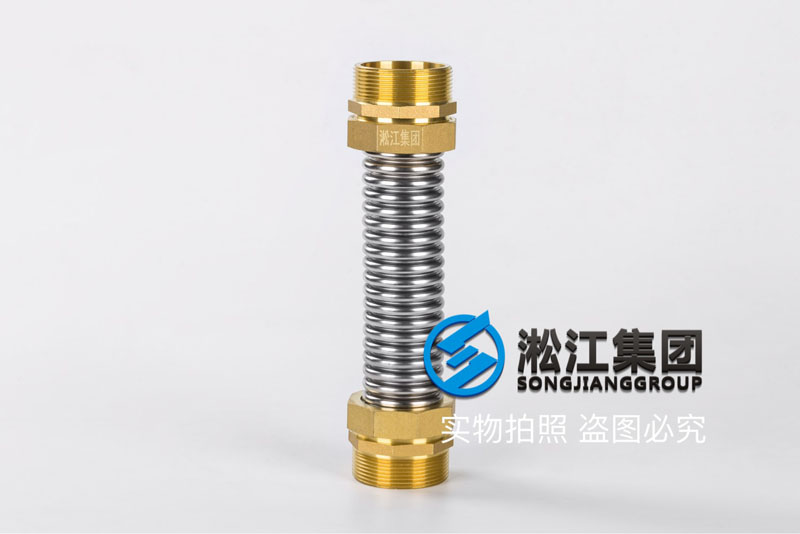

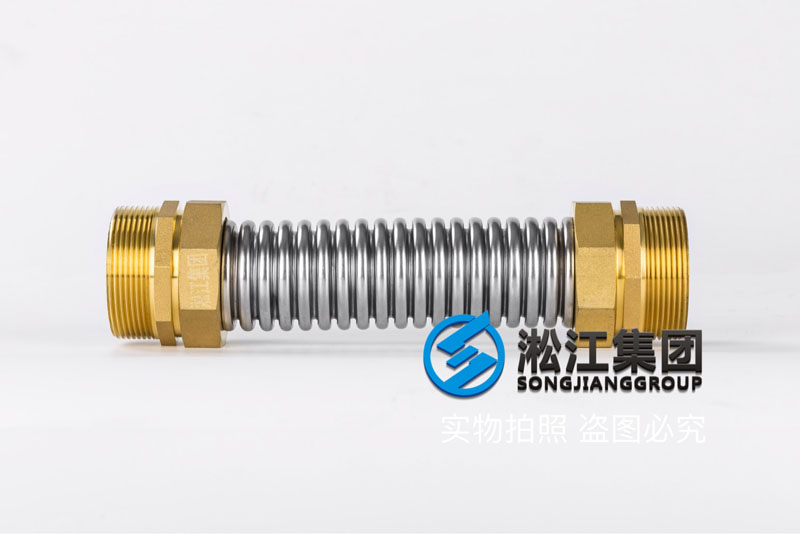

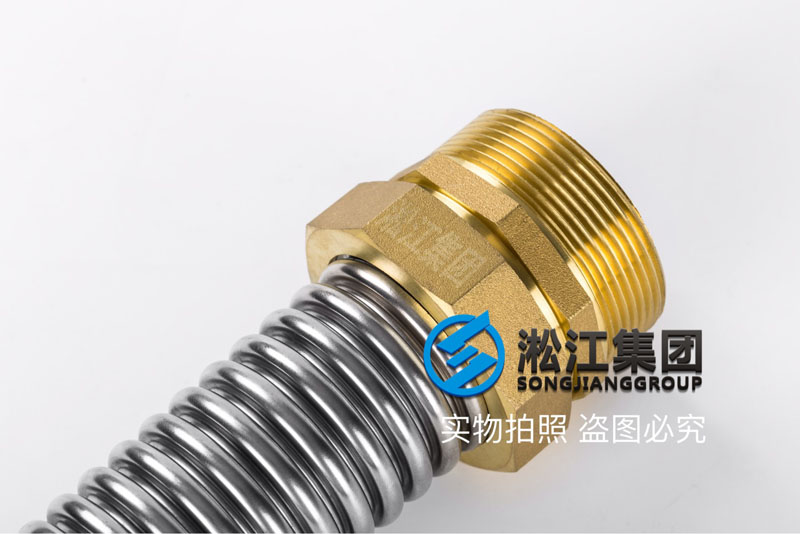

2.產品圖片：見上圖

3.產品結構：內螺紋接頭+外絲

4.產品.點：無需焊接，可按需要長度自行裝配

5.產品通徑：DN10~DN50

6.制作長度：100mm~1000mm

7.產品材料：

①六角接頭：銅

②六角螺母：銅

③密封墊圈：硅橡膠

④波紋管：SUS304
Product introduction:

1. Product Name: DN50 cold and hot water hose

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN10~DN50

6. production length: 100mm~1000mm

7. product materials:

Six angle joint: Copper

Six angle nut: Copper

sealing washer: silicone rubber

Bellows: SUS304以上DN50冷熱水銅頭金屬軟管信息來源于上海淞江減震器集團有限公司官方網站金屬軟管產品中心，如需了解更多請點擊：空調軟管
The above DN50 cold and hot water copper head metal hose information comes from the official website metal hose center of Shanghai Songjiang shock absorber Group Co., Ltd.
