波紋補償器CASE SHOW

BGF-DN200減震不銹鋼波紋膨脹節

服務內容:BGF-DN200減震不銹鋼波紋膨脹節

簡介:BGF-DN200減震不銹鋼波紋膨脹節 Shock absorbing stainless steel corrugated expansion joint 上海淞江減震器集團有限公司官方網站為您介紹:BGF-DN200減震不銹鋼波紋膨脹節信息,淞江集團是一家從事管道減......

BGF-DN200減震不銹鋼波紋膨脹節
Shock absorbing stainless steel corrugated expansion joint

上海淞江減震器集團有限公司官方網站為您介紹:BGF-DN200減震不銹鋼波紋膨脹節信息,淞江集團是一家從事管道減震器的生產廠家,本文章主要介紹管道減震不銹鋼波紋膨脹節產品,該產品具有良好的吸震和軸向補償效果,是眾多管道系統的首要選擇,以下是詳細介紹。
Shanghai Songjiang absorber group limited official website for your introduction: BGF-DN200 damping stainless steel bellows expansion joint, Songjiang group is a professional engaged in the pipeline shock absorber manufacturer, this article mainly introduces the stainless steel bellows pipe shock products, the product has shock absorption and good compensation effect, is the first choice for many the pipeline system, the following is a detailed introduction.

名稱:BGF-DN200減震不銹鋼波紋膨脹節
口徑:DN200mm
壓力:PN16
波數:8波
厚度:1.0mm
長度:340mm
伸縮量:60mm
波紋材質:不銹鋼304
法蘭材質:碳鋼(鍛打)
適用于:管道管線中
作用:吸收管道熱脹冷縮的軸向位移
缺點:請在管道進水口加裝有效去除氯離子裝置(氯離子含量不超過25mg/L),避免水氯離子含量超標,產生針孔腐蝕;
取代者:橡膠接頭是用在設備進出口的,可以補償軸向和橫向位移,減震效果是最好的。并且不受管道內部介質的腐蝕。
品牌:淞江集團

制造商:上海淞江減震器集團有限公司

Name: BGF-DN200 shock absorbing stainless steel corrugated expansion joint
Caliber: DN200mm
Pressure: PN16
Wave number: 8 wave
Thickness: 1.0mm
Length: 340mm
Scalability: 60mm
Corrugated material: stainless steel 304
Flange material: carbon steel (forging)
Brand: Songjiang group

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.BGF-DN200減震不銹鋼波紋膨脹節

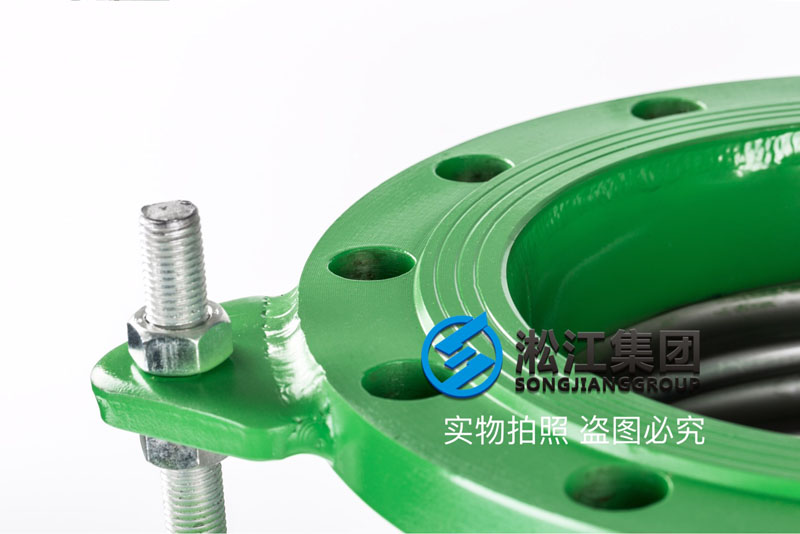

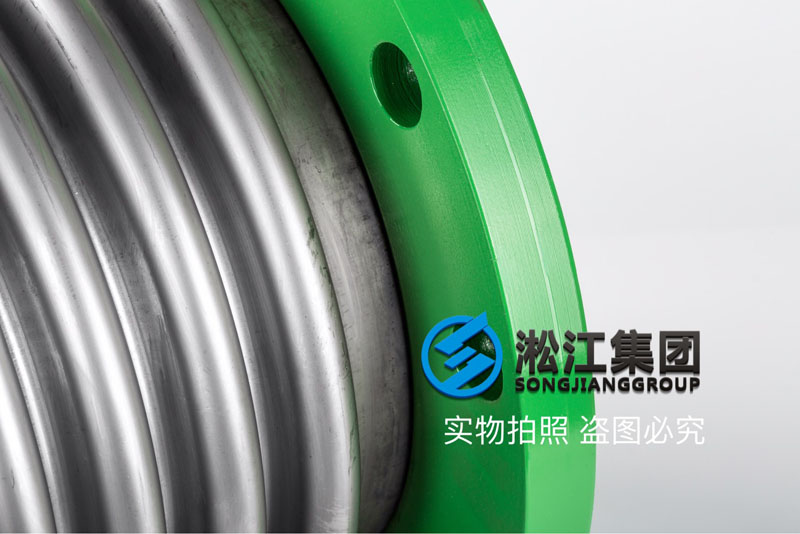

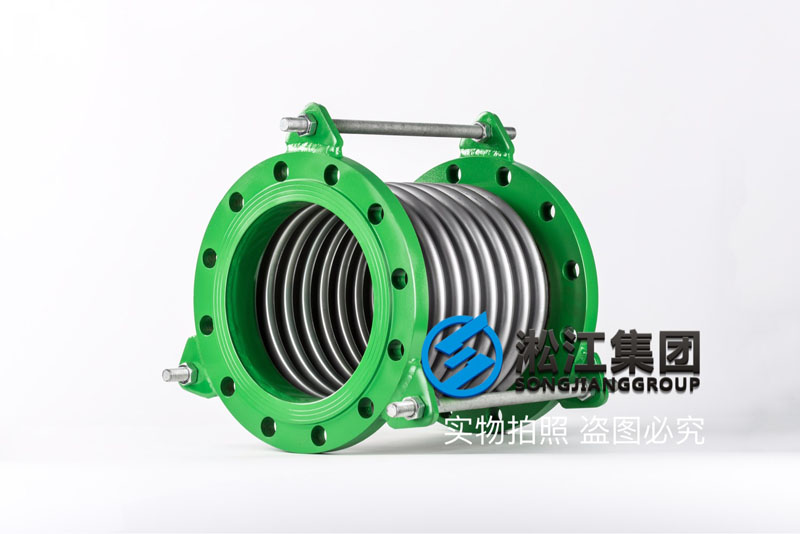

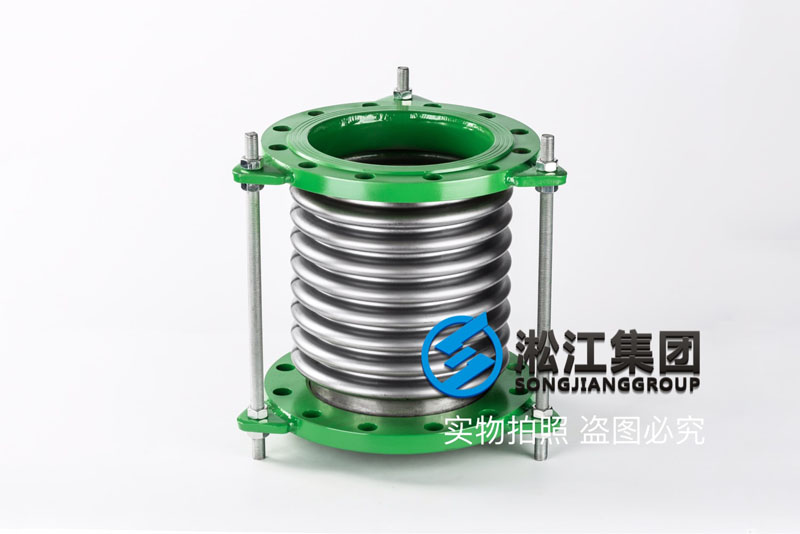

BGF-DN200減震不銹鋼波紋膨脹節
BGF-DN200減震不銹鋼波紋膨脹節
BGF-DN200減震不銹鋼波紋膨脹節
BGF-DN200減震不銹鋼波紋膨脹節
材料說明:
波紋管體:為了更持久的使用壽命,全部采用不銹鋼304正材生產,支持各種光譜儀檢測,假一賠十,厚度全部厚于同行業標準。
連接法蘭:法蘭全部采用山西正宗鍛打材質,無論是強度還是密封性都是很好的材質,不要拿市面上的鑄鋼、鋼板鋼法蘭來對比,沒有任何可比性。
焊材:焊材全部采高于母材等級標準,讓焊接點更加牢固。
限位耳板:耳板全部采用加大加厚尺寸生產,每個型號都可以與同行業同型號去一對一的對比,這就是所謂的沒有對比就沒有傷害。
限位螺桿:螺桿全部采用8.8級高強度鍍鋅,為100%確保產品的綜合強度,不要與市面的4.8級來對比,無意義。

生產標準:淞江集團通過德國萊茵TUV檢測,并且嚴格按照壓力管道生產要求進行生產,讓出廠的每儀個波紋補償器產品達到100%的合格。

Material description:

Bellows body: in order to prolong the service life, all of them are made of stainless steel 304 normal materials, and support the detection of various spectrometers. One false is compensated for ten, and the thickness is all thicker than that of the same industry standard.

Connecting flanges: all flanges are made of Shanxi authentic forged materials, which are good in strength and tightness. Do not compare them with cast steel, steel plate and steel flanges on the market. There is no comparability.

Welding materials: all welding materials shall be higher than the grade standard of base metal to make the welding point more firm.

Limit ear plate: all ear plates are produced by increasing the thickened size. Each model can be compared one-to-one with the same model in the same industry, which is the so-called no harm without comparison.

Limit screw: all screws are made of grade 8.8 high-strength galvanized to ensure 100% of the comprehensive strength of the product. It is meaningless to compare with grade 4.8 in the market.

Production standard: Songjiang group passed the TUV test of Rhine, Germany, and produced in strict accordance with the production requirements of pressure pipeline, so that each corrugated compensator product delivered from the factory can reach 100% qualification.

BGF-DN200減震不銹鋼波紋膨脹節信息來源于上海淞江減震器集團有限公司官方網站案例中心,如需了解該產品參數信息請點擊:【樣冊P93】BGF型 不銹鋼波紋補償器
BGF-DN200 shock absorbing stainless steel corrugated expansion joint information comes from the case center of the official website of Shanghai Songjiang shock absorber Group Co., Ltd.
